Schaller Humimeter PMZ water content of paper pulp

Humimeter PMZ water content of paper pulp
Features

Rapid measurement within seconds
non-destructive
Measuring range: 6% to 40% wet weight water content (material dependent)
Resolution: 0.1% water content
Pulp temperature: 0 to +50°C
Pulp – density range 450 – 900 kg/m³
infrared temperature measurement
Can be used for sulphate and sulphite process
For bleached/unbleached cellulose fibres
12 standard calibration curves (expandable)
Automatic temperature compensation
Manual memory for 10,000 measurements
Dimensions: 575 x 75 x 46 mm
Weight: 685g (with batteries)
Scope of supply: humimeter PMZ, handlebar, wooden case, rubber protection and batteries
Optional: humimeter USB data interface module with LogMemorizer data logger and analysis software on USB stick, portable thermo-printer, bluetooth interface module
Menu languages in English, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish.

Benefits

Knowing the moisture content of the pulp sheet facilitates feed-forward control techniques that enable tight control of paper quality

Consistent high quality product
Smoother processing, less down-time
lower wastage
Higher profits

Measurement and handling:

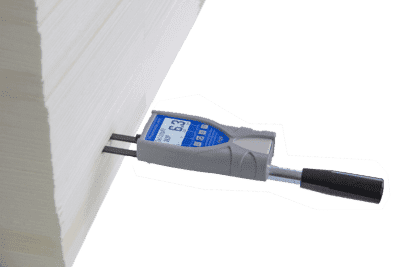

Switch on the measuring meter, select the fibre type and insert the two electrodes into the pile. The measured result is immediately displayed. This enables measurement of large quantities of cellulose/pulp in a very short time interval without removing single layers from the piles.
The device has a memory for up to 10,000 readings as well as the option to record additional data, such as a charge number. The average value for each saved measurement series is automatically calculated.
On the back of the device a removable handle simplifies the use of the device.
The optional USB interface enables you to transfer the measured results to a PC and archive, evaluate, export or print them using the LogMemorizer PC software.

Accessories and Extensions

	Picture	Accessory / Extension
		Test block – For checking the calibration between two different points
		Bluetooth module, class 1, module for humimeter devices with USB interface and appropriate software
		humimeter USB data interface module with LogMemorizer measuring,data recording and analysing software on USB flash drive incl. USB cable for PC
		Thermo printer; industrial model, portable (battery powered)
		Factory calibration certificate. Protocol documenting the calibration of material moisture meters before delivery
