Schaller Humimeter RHL Grain Moisture Meter

humimeter RHL moisture meter for grain stores and silos

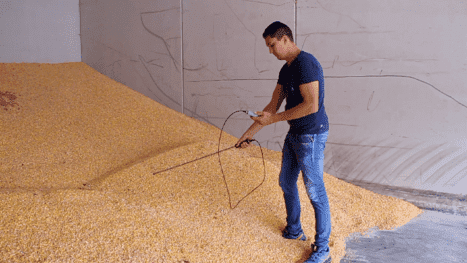

The humimeter RHL measures the moisture content, temperature, relative humidity and dew point of grain up to a depth of 2m. Up to 10,000 measurement values can be stored either manually or automatically on a time based interval.

An optional aw-value chamber is available for small sample volumes

Features

Measuring range:
– Wheat, barley, rye, triticale: 12 to 18% water content
– Aw-value: 0.001 to 1
– Relative humidity: 0 to 100 %
– Dew point: -55 to +60 °C
– Temperature: -20 to +120 °C
Resolution: 0.1% WC, 0.001 aw, 0.5 °C / °F
Automatic temperature compensation
Hold function
Data storage for up to 10.000 values
Menu languages: German, English, French, Italian, Spanish, Portuguese, Czech, Polish, Hungarian, Russian,
Storage temperature: -20 °C to +60 °C
Power supply: 4 x 1.5 Volt AA alkaline batteries
Power consumption: 60 mA ( with backlight)
Unit dimensions: 249 x 75 x 30 mm
Unit weight: 266 g (incl. batteries)
Protection class: IP 40
External measurement probes and sampling options (not included in scope of supply)
– aw – value measuring chamber
– LF_TB 120: Stainless steel insertion probe – Length: 300mm
– LF_TB 120 Special length: stainless steel insertion probe length: up to 2000 mm
Scope of supply: humimeter RHL, rubber protection, user manual and batteries
Optional accessories: plastic case, USB data interface, portable printer, calibration ampoules

Your benefits

Quality assurance
Simple operating procedure
Reduction in wastage

Measurement probes, sample cells and accessories

	Picture	Extended accessories
		LF_TB 120 Precision moisture and temperature plug-in sensor for material moisture, sensor head 0.3 m stainless tube with steel sinter cap and 2 meter connection cable. Relative humidity 0 to 100%, calibration 10 to 90% r.h. +/- 1.5% r.h. (at 23°C), temperature range -20 to +100°C, calibration +/- 0.3°C (at 23°C), rapid conditioning
		LF_TB 120 SPECIAL LENGTH according to customer request Sensor head: length 0.1 to 2 meters stainless steel tube with steel sinter cap 2 meter connection cable

		humimeter USB data interface module with Log Memorizer data recording and analysing software on CD, incl. USB cable for PC
		Thermal printer with rechargeable battery Mobile printer for humimeter devices with USB interface
		Plastic case for humimeter RHL dimensions: 44 cm x 36 cm x 11 cm
		Factory calibration certificate
		Calibration device for pipe sensor


		Certified calibration ampoules – set of 5, 50 % r.h.
		Certified calibration ampoules – set of 5, 80% r.h.

Measuring procedure and data handling:

The main unit of the humimeter RHL enables the connection of different humidity sensors. With the aw-value measuring chamber it is possible to measure small sample volumes. Upon powering the device, temperature and humidity values will be displayed. The measurements can be stored manually by pressing a button or automatically using a timed interval on the data logger. The measuring device provides curves for wheat, barley, rye and triticale. Further grain varieties can be added on request. With the help of a capacitive humidity sensor you can determine the balance humidity. The addition of the optional USB data interface module enables connection of the RHL device to a PC and both storage and evaluation of the measured data through Log memorizer software.
