Accurate Drainage Monitoring for Low-Volume Irrigation Systems
The Horticulture Drainage Sensor from Aranet is designed for precise monitoring of drain water volume in low-volume irrigation systems. Equipped with a drain volume sensor and dedicated holders for Aranet EC and pH probes, it provides comprehensive insights into water usage and quality.
As part of the PRO sensor series, this device uses Aranet Sub-GHz ISM band radio for wireless data transmission to the Aranet PRO base station. Housed in a durable nylon PA12 enclosure with an IP67 protection rating, it ensures reliable performance in various horticulture environments.
Ensure accurate water management and maintain optimal growing conditions with the Horticulture Drainage Sensor and get reliable, real-time data to enhance your horticulture operations.
Typical Features:
- Accurate Drainage Monitoring: Measures drain water volume with a maximum flow rate of 3.6 l/h and ±5% accuracy.
- Wireless Data Transmission: Transmits real-time sensor data using Aranet Sub-GHz ISM band radio.

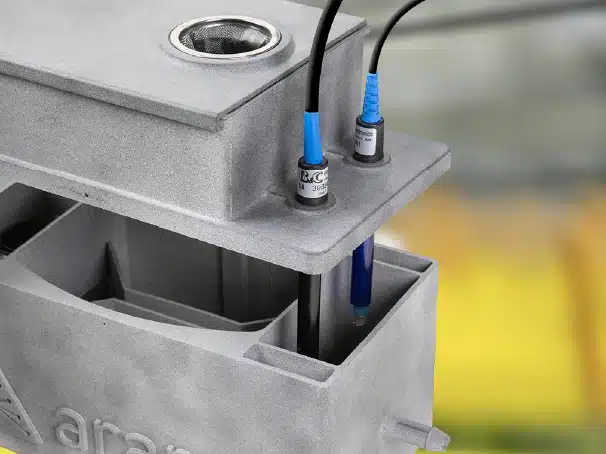

- EC and pH Probe Holders: Integrated holders for Aranet EC and pH probes for simultaneous water quality monitoring.
- Self-Emptying Tipping Bucket: Efficiently measures drainage through a pulse counter, with each pulse representing a predefined water volume.
- Rugged and Waterproof Design: IP67-rated nylon PA12 enclosure for protection against water and dust.
- Wide Operating Temperature Range: Functions reliably in temperatures from -40 °C to 60 °C (-40 °F to 140 °F).
- Compact and Lightweight: Weighs only 1.6 kg (3.5 lbs) with dimensions of 290 x 200 x 150 mm (11.4 x 7.9 x 5.9 in).
- Convenient Buffer Container: 1-litre buffer container for temporary water collection.
- Easy Calibration: Supports simple configuration through the Aranet base station web interface.
Typical Applications:
- Greenhouse Irrigation Management: Monitor drainage volumes to assess water consumption and improve irrigation efficiency.
- Hydroponic and Soilless Cultivation: Ensure accurate nutrient management by tracking water drainage and quality.
- Agricultural Research: Collect reliable drainage data for analyzing plant water use and optimizing irrigation strategies.
- Water Quality Control: Evaluate irrigation system performance by integrating EC and pH probes for real-time water quality assessment.
- Sustainability Monitoring: Track water usage to reduce waste and support sustainable agricultural practices.
