Schaller Humimeter RH5 Moisture in Paper Stacks

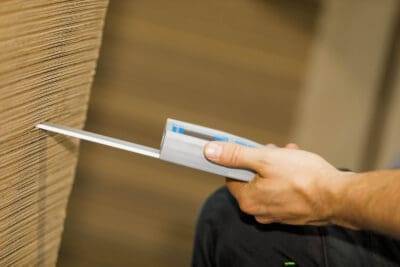

The humimeter RH5 paper moisture meter with sword probe provides virtually instantaneous moisture measurements upon insertion of the probe into a paper stack.

Measurement values can be stored directly on the humimeter RH5 paper moisture meter and additional data can be added. An additional feature is the Autolog function, this enables data to be saved over adjustable time intervals.

A sword sensor holder and a sword sensor holder removal tool are options available to prevent damage to the sword sensor when using the humimeter RH5 paper moisture meter in heavy paper stacks.

The humimeter RH5 paper moisture meter measures the paper temperature in addition to the RH%, and includes it in the calculation of the measured result.

The calibrated measuring range of the humimeter RH5 paper moisture meter is 10 % to 100 % relative air humidity.  Air humidity equates to paper moisture.   It follows that the humimeter RH5 paper moisture meter is also ideal for air humidity measurement.

The humimeter RH5 paper moisture meter can be connected to a PC via a USB interface. LogMemoriser software enables the downloading of measurement values from the device, additional information can be added, and the data can be archived, exported and processed

A thermo printer is optionally available for the humimeter RH5 paper moisture meter with USB interface enabling printouts of the measurement value in the absence of a PC.

• RH 0-100%, resolution 0.1%
• Calibration  10 – 90% +/-1.5%RH (at 25°C)
• Temperature -10 – 60°C, resolution 0.1°C
• Calibration +/- 0.3°C (at 25°C)
• Dew point -55 to +60°C, resolution 0.1°C
• Hold function, manual saving of results
• Automatic data log for up to 10,000 logs with measuring point report
• Scope of supply: humimeter RH5 with rubber protection cover, wooden case and batteries
• Optional: humimeter USB data interface module with LogMemoriser measuring and data recording/analysing software on USB flash drive incl. USB cable for PC,  printer

• Ease of use – in terms of set-up and data storage within the portable meter providing automatic documentation
• Time saving – data can be downloaded and documentation generated within minutes
• Cost savings  – measurement enables optimisation of storage and printing humidity climate and reduces wastage.


  Accessories

  	Picture	Accessories

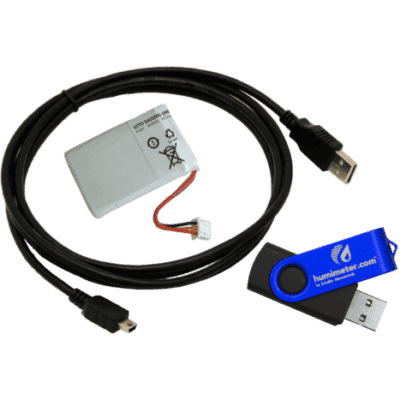

  		humimeter USB data interface module with LogMemoriser s/w  for measuring, data recording and analysing on USB flash drive incl. USB cable for PC
  		humimeter USB data interface module VERSION FOR RECHARGEABLE BATTERIES with LogMemoriser  for measuring, data recording and analysing software on USB flash drive ( incl. USB cable for PC)
  		Bluetooth data communication module for all humimeter devices with serial interface RS232

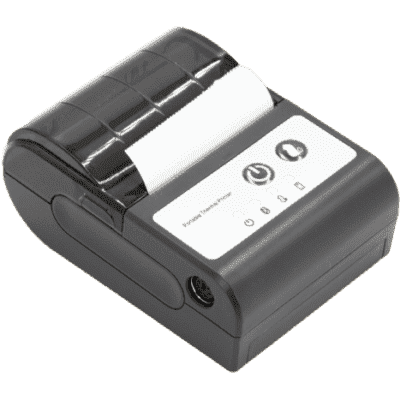

  		Portable durable Thermo printer , battery powered

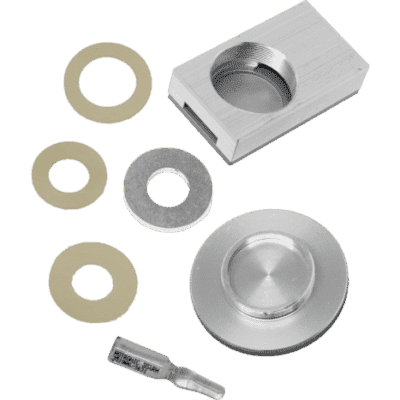

  		Calibration equipment for device with sword sensor for paper stacks
  		Certified calibration ampoules – set of 5, 50% r.h.

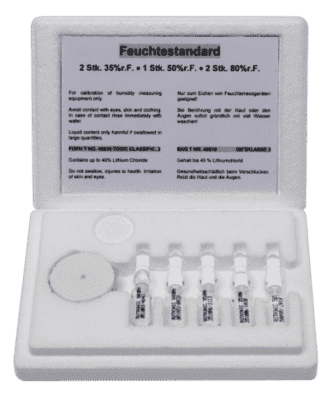

  		Certified calibration ampoules – set of 5. 2 x 35% r.h., 1 x 50% r.h.,  2 x 80% r.h.
  		Sword sensor holder for humimeter RH5 and RH6

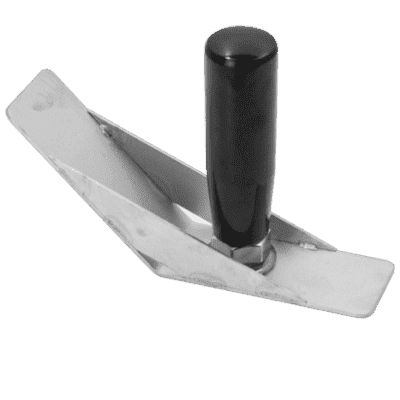

  		Tool for removing sword sensor holder. For humimeter RH5 and RH6.

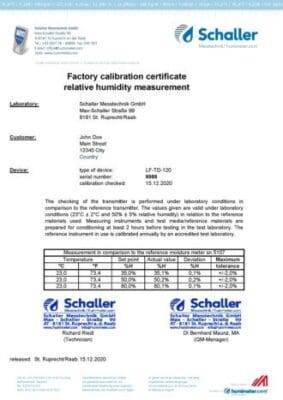

  		Factory calibration certificate Protocol documenting the adjustment at delivery for air humidity meters.
  		Checking the calibration of FS_3 series devices, RH and LF series
