The humimeter PMP, paper moisture at the pile, measures the absolute water content of paper and solid cardboard after the sheeter. It is also used by converters, printing houses, paper retailers and corrugated paper manufacturers to check the moisture content before it undergoes further processing or packaging.
Note that the PMP is intended for moisture measurement at the Pile or on static rolls. For measurement at the running roll, the humimeter PM5 is required! and for measurement of moisture in corrugated board, the humimeter RH5 is the most suitable moisture meter.
humimeter PMP moisture meter for a paper stack.
Demo video
Features
- Measuring range 1 – 15% moisture content, material dependent
- Resolution: 0.1% moisture content
- Measuring depth: 20 mm
- Paper temperature: 0 – 50°C
- Automatic temperature compensation
- No sample pre-treatment necessary
- Speedy measurement within seconds
- Hold function, automatic datalog and manual saving of results for up to 10,000 measurements with report
- Large, well-lit LC display
- Size: 147 x 75 x 30 mm incl. rubber protector, weight 265 g complete with batteries
- Scope of supply: humimeter PMP with rubber protector, wooden case, proof plate and batteries
Your benefits
- Time savings – Rapid measurement using a non-destructive method
- Cost savings – can be used at multiple locations
– enables corrective action to be undertaken ensuring processability in further operations. - Ease of use – Simple handling
Accessories and Extensions
| Picture | Accessory / Extensions | |
|---|---|---|
| Entry of an existing calibration curve in a humimeter PMP | ||
| Laboratory analysis testing for new material using a Schaller humimeter device | ||
 |
humimeter USB data interface module with LogMemoriser for measuring, data recording and analysis. Software on USB flash drive incl. USB cable for PC |
|
 |

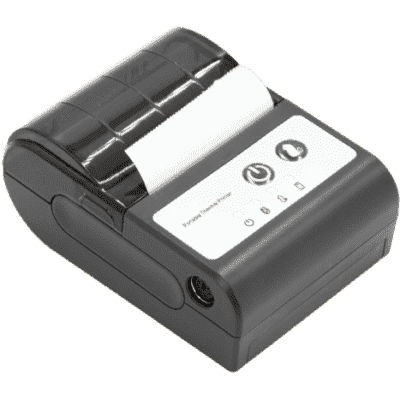

Thermo printer – battery powered, industrial model, portable | |
| Factory calibration certificate. Protocol documenting the calibration of material moisture meter pre-delivery |
Auxiliary Modules
Accessories
