Humimeter PM5 Paper Moisture Analyser
The humimeter PM5 paper moisture tester is for paper manufacturers, paper processors and paper retailers. It provides a non-destructive determination of absolute moisture of paper and cardboard on warm, running paper rolls in addition to static cool open or packaged rolls to a high measurement depth and also delivers a non-contact infrared temperature measurement.
Features
- Measuring range: 1 – 25% MC (moisture content)
- Resolution: 0.1% moisture content
- Measuring depth: 50 mm
- Non-contact infrared temperature measurement for automatic compensation and high accuracy moisture measurement.
- Measurement within seconds without pre-treatment of samples
- Hold function, automatic datalog and manual storage of results up to 10,000 measurement values
- Large, well-lit LC display
- Dimensions 254 x 138 x 70 mm (with rubber protector) weight 850 g including batteries
- Scope of supply: humimeter PM5, humimeter USB data interface module with LogMemoriser for measuring, data recording and analysing (pc software), rechargeable battery, plastic case with proof plate
Your benefits
- Rapid accurate moisture and temperature measurement
- Simple testing in-situ, no sample preparation, immediate measurement results and non destructive.
- Simple handling, small, handy, applicable everywhere on site
Accessories and Extensions
| Picture | Accessory / Extension | |
|---|---|---|
| Entry of an existing characteristic calibration curve in a humimeter device | ||
| Laboratory analysis for calibration curve for a new material | ||
| Laboratory analysis for preparation of a calibration curve for a new material for humimeter PM5 and conversion of absolute water content into relative paper moisture (max. 0 – 100%). Please indicate required measuring range! |
||
 |

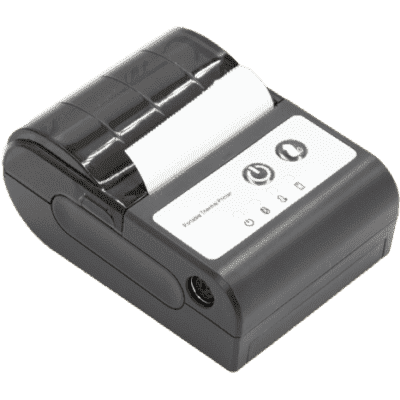

Battery powered Thermo printer, industrial model, portable Dimensions: 180 x 100 x 45 mm, weight: 0.4 kg |
|
| Factory calibration certificate. Protocol documenting the calibration of material moisture meters pre-delivery | ||
| Spare parts set: 3 pieces of measuring bows for humimeter PM5 |
||
| Plug power supply unit USB; output: 5VDC, USB A connector; input: 90-250VAC, EU plug, -5 to +45°C |
